Product model:

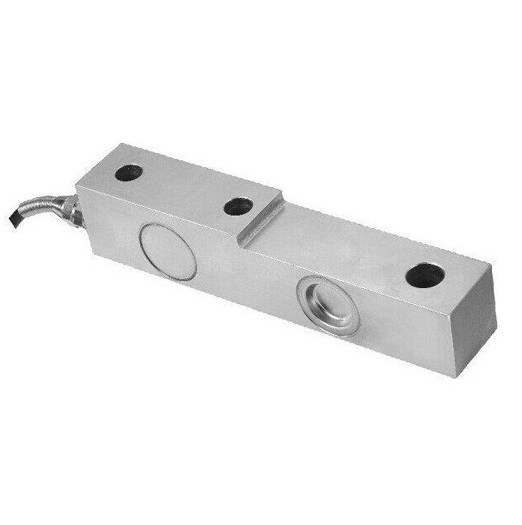

BTB-5T weighing sensor
Product price: online inquiry
Product features:
L cantilever beam weighing sensor
L high quality alloy steel with nickel plating
High accuracy, high stability, easy to install and fast
L unique bearing blind hole design
L can choose stainless steel material
Range of l range: 300kg, 500kg, 1t, 2t, 3t, 5t, 7.5t, 8t, 10t,
15t, 20t, 25t
L application: floor balance, automobile balance, batching scale, various special weighing machines and batching stations, etc.
Product technical parameters:
parameter | unit | value |
Rated load | t | 0.3，0.5，1，2，3，5，7.5，8，10，15，20，25 |
The sensitivity | Mv/v | 2.0±0.002% |
Comprehensive error | %FS | ±0.05% |
creep（30minutes） | %FS | ±0.02% |
Zero balance | %FS | ±1.0% |
Zero temperature influence | %FS | ±0.02%FS/10°C |
Output temperature influence | %FS | ±0.02%FS/10°C |
The input impedance | Ohms | 400±20 |
Output impedance输出阻抗 | Ohms | 352±3 |
Insulation impedance | Mega-Ohms | ≥5000 |
Temperature compensation range | °C | -10°C to + 40°C |
Operating temperature range | °C | -30°C to + 70°C |
Safety overload | %FS | 150% |
Ultimate overload | %FS | 200% |
Recommended excitation voltage | VDC | 10-12V DC |
Maximum excitation voltage | VDC | 15V DC |
| Protection grade | IP67(300-500Kg),IP68（1-25t） | |
material | Alloy steel, stainless steel | |
The length of the wire | M | 2.6m 3.5m 5.2m 7m 12m |
