Product information

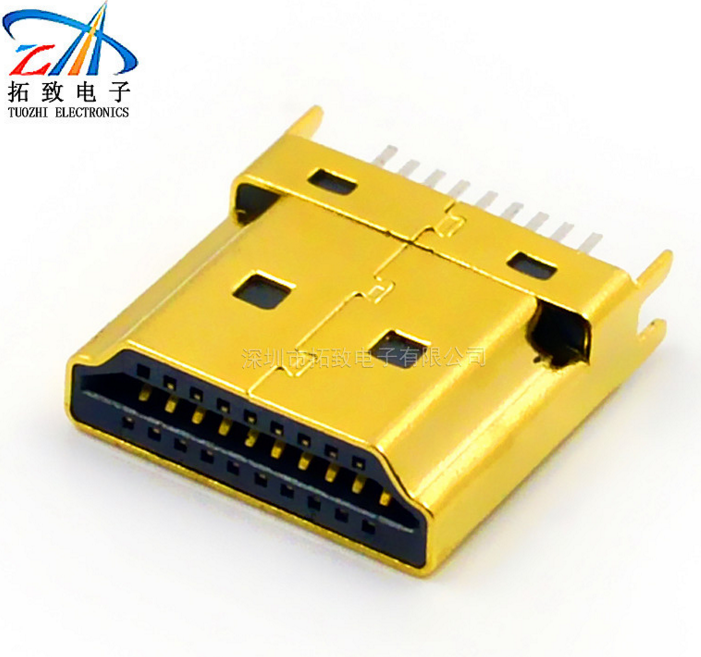

Name: HDMI gao qinggong head plug-in connector

Brand: T Z

Model: HDMI 19PIN high clear head board type

1. Product specifications:

1. 1. Insertion force: 35N MAX

1-2. Pull out force: 10N MIN.INITIAL 8-20n AFTER

1-3. Rated current: 1.5a

1-4. Rated voltage: 30V

1-5. Durability: 3000 CYCLES MIN

1-6. Voltage resistance: 500V, ac/min

1-7. Contact impedance: 30 m or less Ω

1-8. Insulation resistance: 100 m Ω or higher

1-9. Working temperature: -20 degrees TO +60 degrees

2. Product materials

2-1. Glue core: PBT/LCP ul94v-0

2-2. Terminal: brass C2680, nickel base, plated 1 u,

2-3. Shell: SPCC/C2680 full area nickel plated 40 u MIN

3. The materials shall conform to the ROHS requirements.
